Functional Programming

with purrr

Roland Krause

Rworkshop

Thursday, 8 February 2024

Learning objectives

Learning objectives

Functional programming approach to focus on actions
Iteration machinery written by someone else
Pass functions as arguments to higher order functions
Use map() to replace remaining for loops
Working with lists
Nesting

Motivation

Building multiple models from tidy data (purrr)
Working with multiple models (broom, next lecture)

Reminders for R

Vectors

Atomic vectors

Atomic means only one type of data

The type of each atom is the same. The size of each atom is one single element.

The conversion between types can be + Explicit (using as.*() functions) + or Implicit

# Logical
c(TRUE, FALSE, TRUE)

[1]  TRUE FALSE  TRUE

# double
c(1, 5, 7)

[1] 1 5 7

# automatic coercion
str(c(1, 5, 7, "seven"))

 chr [1:4] "1" "5" "7" "seven"

# voluntary coercion
as.character(c(1, 5, 7, "seven"))

[1] "1"     "5"     "7"     "seven"

The tidyverse vctrs prevent any automatic coercion

Lists

Lists as trains

The steam machine is the `list()` structure

Sub-selection

Lists are cool

Can contain anything, named or not

list(head(women, 3),
     sw = head(swiss, 3), c("ab", "c"))

[[1]]
  height weight
1     58    115
2     59    117
3     60    120

$sw
             Fertility Agriculture Examination Education Catholic
Courtelary        80.2        17.0          15        12     9.96
Delemont          83.1        45.1           6         9    84.84
Franches-Mnt      92.5        39.7           5         5    93.40
             Infant.Mortality
Courtelary               22.2
Delemont                 22.2
Franches-Mnt             20.2

[[3]]
[1] "ab" "c"

Even empty slot

list(head(women, 3), NULL,
     sw = head(swiss, 3), c("ab", "c"))

[[1]]
  height weight
1     58    115
2     59    117
3     60    120

[[2]]
NULL

$sw
             Fertility Agriculture Examination Education Catholic
Courtelary        80.2        17.0          15        12     9.96
Delemont          83.1        45.1           6         9    84.84
Franches-Mnt      92.5        39.7           5         5    93.40
             Infant.Mortality
Courtelary               22.2
Delemont                 22.2
Franches-Mnt             20.2

[[4]]
[1] "ab" "c"

Lists inside rectangle data

Rectangle, tibble/data.frame fits our mindset

2D representation of data we see everywhere

cms <- sample_n(tidyr::cms_patient_care, size = 4)
cms

# A tibble: 4 × 5
  ccn    facility_name                          measure_abbr      score type
  <chr>  <chr>                                  <chr>             <dbl> <chr>
1 011500 BAPTIST HOSPICE                        composite_process   202 denomin…
2 011514 ST VINCENT'S HOSPICE                   pain_screening      210 denomin…
3 011502 COMFORT CARE COASTAL HOSPICE - BALDWIN pain_screening      295 denomin…
4 011517 HOSPICE OF WEST ALABAMA                dyspnea_screening   400 denomin…

Are columns with more complex structures useful?
Can we not model everything flat?
How to store some JSON?

Use list-columns

cms |>
  mutate(metadata = list(
    women,
    vec = c("ab", "c"),
    lm(height ~ weight, data = women),
    NULL
  ), .after = ccn)

# A tibble: 4 × 6
  ccn    metadata      facility_name                    measure_abbr score type
  <chr>  <named list>  <chr>                            <chr>        <dbl> <chr>
1 011500 <df [15 × 2]> BAPTIST HOSPICE                  composite_p…   202 deno…
2 011514 <chr [2]>     ST VINCENT'S HOSPICE             pain_screen…   210 deno…
3 011502 <lm>          COMFORT CARE COASTAL HOSPICE - … pain_screen…   295 deno…
4 011517 <NULL>        HOSPICE OF WEST ALABAMA          dyspnea_scr…   400 deno…

However, how can we iterate along list-columns?

Functions as actions

Functions declared …

my_function <- function(my_argument) {
  my_argument + 1
}

in the global environment …

    ls()

[1] "my_function"

    ls.str()

my_function : function (my_argument)

are reusable.

    my_function(2)

[1] 3

Anonymous functions …

are not stored in an object and are used “on the fly” and

(function(x) { x + 2 })(2) #

[1] 4

do not alter the global environment.

 ls()

[1] "my_function"

# remove the previous my_function to convince you
rm(my_function)
(\(x) x + 2)(2)

[1] 4

ls()

character(0)

purrr

purrr enhances R with consistent tools for working with functions, lists and vectors.

Functional programming […] treats computation as the evaluation of mathematical functions and avoids changing-state and mutable data

— Wikipedia

Function, the LEGO figures example

Consider a hypothetic `put_on` function

`put_on(figures, antenna)` returns a LEGO figure with antenna

Iteration with LEGO figures

Illustration for several lego

How to apply put_on() to more than 1 input?

`put_on(figures, antenna)`

Functional programming

Back to R programming

For loop approach

out <- vector("list", length(legos))
for (i in seq_along(legos)) {
  out[[i]] <- put_on(legos[[i]], antenna) #<<
}
out

Functional programming approach

Named function

antennate <- function(x) put_on(x, antenna)
map(figures, antennate)

Anonymous function

map(figures, \(x) put_on(x, antenna))

[Of course, someone has to write loops. It doesn’t have to be you.

— Jenny Bryan]{.center}

Your turn

04:00

Questions

Calculate the mean of each column of the swiss dataset, which is packaged with base R.

Tips

purrr::map() expects 2 arguments:
1. a list
2. a function
A data.frame is a list
Each column represents an element of the list i.e. a data frame is a list of vectors

Answer

Functional programming focuses on actions

map(swiss, mean) |>
  str()

List of 6
 $ Fertility       : num 70.1
 $ Agriculture     : num 50.7
 $ Examination     : num 16.5
 $ Education       : num 11
 $ Catholic        : num 41.1
 $ Infant.Mortality: num 19.9

The for loop machinery

means <- vector("list", ncol(swiss))
for (i in seq_along(swiss)) {
  means[i] <- mean(swiss[[i]]) #<<
}
# Need to manually add names
names(means) <- names(swiss)
means |>
  str()

List of 6
 $ Fertility       : num 70.1
 $ Agriculture     : num 50.7
 $ Examination     : num 16.5
 $ Education       : num 11
 $ Catholic        : num 41.1
 $ Infant.Mortality: num 19.9

The `purrr::map()` family of functions

Are designed to be consistent
map() is the general function and close to base::lapply()
map() introduces shortcuts (absent in lapply())
Variants to specify the type of vectorized output:
- map_lgl()
- map_int()
- map_dbl()
- map_chr()
- map_dfr() data.frame rows
- map_dfc() data.frame cols
Fail if coercion is impossible

map_dbl(swiss, mean)

       Fertility      Agriculture      Examination        Education
        70.14255         50.65957         16.48936         10.97872
        Catholic Infant.Mortality
        41.14383         19.94255

map_chr(swiss, mean)

       Fertility      Agriculture      Examination        Education
     "70.142553"      "50.659574"      "16.489362"      "10.978723"
        Catholic Infant.Mortality
     "41.143830"      "19.942553"

map_int(swiss, mean)

Error in `map_int()`:
ℹ In index: 1.
ℹ With name: Fertility.
Caused by error:
! Can't coerce from a number to an integer.

Iterating on 2 lists in parallel

enhair <- function(x, y) put_on(x, y)
map2(legos, hairs, enhair)

map2 example and pmap

marks <- list(report = c(14, 13),
              practical = c(10, 12),
              theoritical = c(17, 8))
marks

$report
[1] 14 13

$practical
[1] 10 12

$theoritical
[1] 17  8

coef_basv <- c(2, 0.5, 1.5)

map2(marks, coef_basv,  \(x, y) x * y) #<<

$report
[1] 28 26

$practical
[1] 5 6

$theoritical
[1] 25.5 12.0

Iterate on list, but vectorized on atomic vectors

Generate grid of values for named arguments of a desired function

expand_grid(n = c(3, 6),
            min = 1,
            max = c(4, 8)) -> unif_grid
unif_grid

# A tibble: 4 × 3
      n   min   max
  <dbl> <dbl> <dbl>
1     3     1     4
2     3     1     8
3     6     1     4
4     6     1     8

pmap(unif_grid, runif)

[[1]]
[1] 2.610502 2.574514 2.522395

[[2]]
[1] 7.210280 5.271757 5.246017

[[3]]
[1] 1.549327 1.237971 3.628081 2.490355 1.289043 1.467250

[[4]]
[1] 3.533091 6.507228 2.663833 5.503842 1.488231 7.394657

Linear modelling example

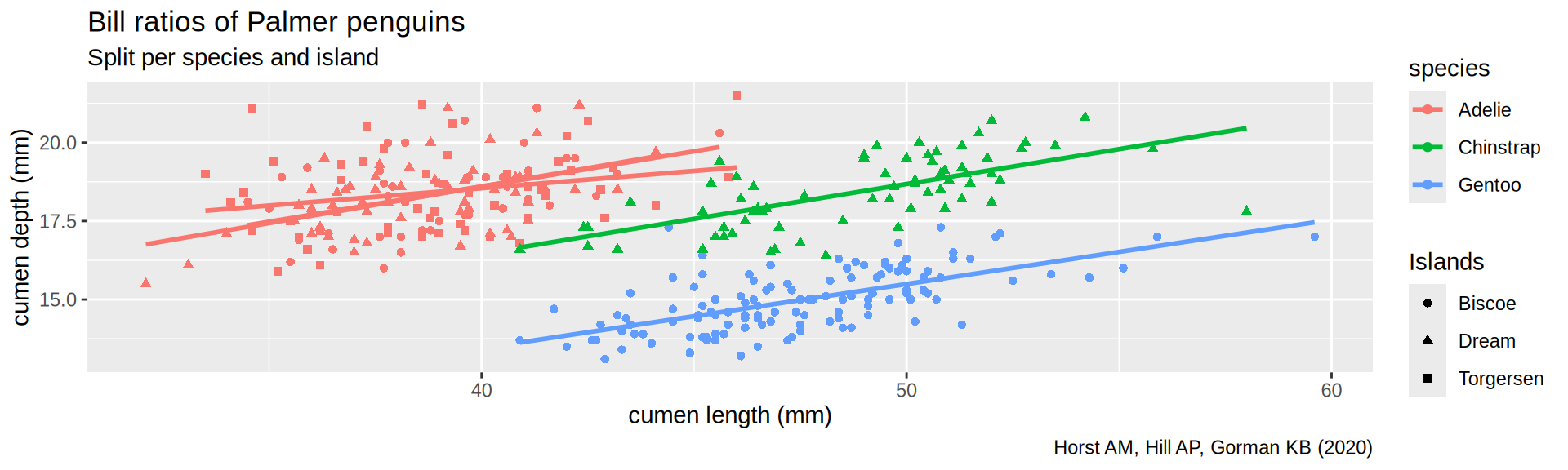

Palmer penguins from previous lecture

library(palmerpenguins)
ggplot(penguins,
       aes(x = bill_length_mm,
           y = bill_depth_mm,
           colour = species)) +
  geom_point() +
  geom_smooth(method = "lm", formula = 'y ~ x',
      # no standard error ribbon
              se = FALSE) +
  facet_grid(island ~ .)

How to perform those 5 linear model?

From R for Data Science

Reminder: Fitting a linear model

Using the pinguins dataset we can fit a linear model to explain the bill depth by the bill_length_mm.

lm(bill_depth_mm ~ bill_length_mm, data = penguins)


Call:
lm(formula = bill_depth_mm ~ bill_length_mm, data = penguins)

Coefficients:
   (Intercept)  bill_length_mm
      20.88547        -0.08502

Reminder: `lm` outputs complex objects

Summarise a linear model with `base::summary()`

\(R^2\) is low (0.05525) because we mix all individuals.
We need one tibble per group

summary(lm(bill_depth_mm ~ bill_length_mm, data = penguins))


Call:
lm(formula = bill_depth_mm ~ bill_length_mm, data = penguins)

Residuals:
    Min      1Q  Median      3Q     Max
-4.1381 -1.4263  0.0164  1.3841  4.5255

Coefficients:
               Estimate Std. Error t value Pr(>|t|)
(Intercept)    20.88547    0.84388  24.749  < 2e-16 ***
bill_length_mm -0.08502    0.01907  -4.459 1.12e-05 ***
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Residual standard error: 1.922 on 340 degrees of freedom
  (2 observations deleted due to missingness)
Multiple R-squared:  0.05525,   Adjusted R-squared:  0.05247
F-statistic: 19.88 on 1 and 340 DF,  p-value: 1.12e-05

Split the penguin data

Split a data.frame by group into a list of tibble

split_peng <- group_split(palmerpenguins::penguins,
                          island,
                          species)

Get the dimensions of each tibble in the list

map(split_peng, dim)

[[1]]
[1] 44  8

[[2]]
[1] 124   8

[[3]]
[1] 56  8

[[4]]
[1] 68  8

[[5]]
[1] 52  8

Coercion

How many observations per group?
Coerce to a double vector

map_dbl(split_peng, nrow)

[1]  44 124  56  68  52

Map the linear model

General syntax: map(list, function)

list split_peng
function can be an anonymous function

Curly braces are optional but helpful

Several code lines
Wrap lines to improve readability

map(split_peng, \(x) {
  lm(bill_depth_mm ~ bill_length_mm,
     data = x)
})

[[1]]

Call:
lm(formula = bill_depth_mm ~ bill_length_mm, data = x)

Coefficients:
   (Intercept)  bill_length_mm
        9.6263          0.2244


[[2]]

Call:
lm(formula = bill_depth_mm ~ bill_length_mm, data = x)

Coefficients:
   (Intercept)  bill_length_mm
        5.2510          0.2048


[[3]]

Call:
lm(formula = bill_depth_mm ~ bill_length_mm, data = x)

Coefficients:
   (Intercept)  bill_length_mm
        9.2607          0.2335


[[4]]

Call:
lm(formula = bill_depth_mm ~ bill_length_mm, data = x)

Coefficients:
   (Intercept)  bill_length_mm
        7.5691          0.2222


[[5]]

Call:
lm(formula = bill_depth_mm ~ bill_length_mm, data = x)

Coefficients:
   (Intercept)  bill_length_mm
       14.1359          0.1102

To extract \(R^2\)

`base::summary()` generates a list

lm_all <- summary(lm(bill_depth_mm ~ bill_length_mm,
                     data = penguins))
str(lm_all, max.level = 1, give.attr = FALSE)

List of 12
 $ call         : language lm(formula = bill_depth_mm ~ bill_length_mm, data = penguins)
 $ terms        :Classes 'terms', 'formula'  language bill_depth_mm ~ bill_length_mm
 $ residuals    : Named num [1:342] 1.139 -0.127 0.541 1.535 3.056 ...
 $ coefficients : num [1:2, 1:4] 20.8855 -0.085 0.8439 0.0191 24.7492 ...
 $ aliased      : Named logi [1:2] FALSE FALSE
 $ sigma        : num 1.92
 $ df           : int [1:3] 2 340 2
 $ r.squared    : num 0.0552
 $ adj.r.squared: num 0.0525
 $ fstatistic   : Named num [1:3] 19.9 1 340
 $ cov.unscaled : num [1:2, 1:2] 1.93e-01 -4.32e-03 -4.32e-03 9.84e-05
 $ na.action    : 'omit' Named int [1:2] 4 272

Extract elements from lists

lm_all$r.squared            # Base R $ notation

[1] 0.05524985

lm_all[["r.squared"]]       # Base R double brackets notation

[1] 0.05524985

pluck(lm_all, "r.squared")  # purrr::pluck()

[1] 0.05524985

Extract \(R^2\) for all groups

Using anonymous functions (i. e lambdas)

split_peng |>
  map(\(x) lm(bill_depth_mm ~ bill_length_mm,
              data = x)) |>
  map(summary) |>
  map(\(x) pluck(x, "r.squared"))

[[1]]
[1] 0.2192052

[[2]]
[1] 0.4139429

[[3]]
[1] 0.2579242

[[4]]
[1] 0.4271096

[[5]]
[1] 0.06198376

Further simplifications

With shortcuts from `purrr`

split_peng |>
  map(\(grp) lm(bill_depth_mm ~ bill_length_mm,
                data = grp)) |>
  map(summary) |>
  map("r.squared") #<<

[[1]]
[1] 0.2192052

[[2]]
[1] 0.4139429

[[3]]
[1] 0.2579242

[[4]]
[1] 0.4271096

[[5]]
[1] 0.06198376

With coercion to doubles vector `map_dbl()`

split_peng |>
  map(\(x) lm(bill_depth_mm ~ bill_length_mm,
              data = x)) |>
  map(summary) |>
  map_dbl("r.squared") #<<

[1] 0.21920517 0.41394290 0.25792423 0.42710958 0.06198376

purrr anonmyous functions

The package contains its own lambda, which predates the \() syntax in base R.
It uses ~ in place of \() and has default placeholders starting with ..
We advise against its use.

Lists as a column in a tibble

Example

tibble(numbers = 1:8,
       my_list = list(a = c("a", "b"), b = 2.56,
                      c = c("a", "b", "c"), d = rep(TRUE, 4),
                      d = 2:3, e = 4:6, f = FALSE, g = c(1, 4, 5, 6)))

# A tibble: 8 × 2
  numbers my_list
    <int> <named list>
1       1 <chr [2]>
2       2 <dbl [1]>
3       3 <chr [3]>
4       4 <lgl [4]>
5       5 <int [2]>
6       6 <int [3]>
7       7 <lgl [1]>
8       8 <dbl [4]>

Nesting

Rewriting our previous example

Nesting the `tibble` by `island` and `species`

penguins |>
  nest(.by = c(island, species))

# A tibble: 5 × 3
  island    species   data
  <fct>     <fct>     <list>
1 Torgersen Adelie    <tibble [52 × 6]>
2 Biscoe    Adelie    <tibble [44 × 6]>
3 Dream     Adelie    <tibble [56 × 6]>
4 Biscoe    Gentoo    <tibble [124 × 6]>
5 Dream     Chinstrap <tibble [68 × 6]>

Rewriting our previous example

With modelling using `mutate` and `map`

penguins |>
  nest(.by = c(island, species)) |>
  mutate(model = map(data,
                     \(x) lm(bill_depth_mm ~ bill_length_mm,
                          data = x)),
         summary = map(model, summary),
         r_squared = map_dbl(summary, "r.squared"))

Very powerful
Data rectangle
Next lecture will show you how dplyr, tidyr, tibble, purrr and broom nicely work together

# A tibble: 5 × 6
  island    species   data               model  summary    r_squared
  <fct>     <fct>     <list>             <list> <list>         <dbl>
1 Torgersen Adelie    <tibble [52 × 6]>  <lm>   <smmry.lm>    0.0620
2 Biscoe    Adelie    <tibble [44 × 6]>  <lm>   <smmry.lm>    0.219
3 Dream     Adelie    <tibble [56 × 6]>  <lm>   <smmry.lm>    0.258
4 Biscoe    Gentoo    <tibble [124 × 6]> <lm>   <smmry.lm>    0.414
5 Dream     Chinstrap <tibble [68 × 6]>  <lm>   <smmry.lm>    0.427

Don’t forget vectorisation!

Don’t “overmap” functions!

Use map() only if required for functions that are not vectorised.

nums <- sample(1:10,
               size = 1000,
               replace = TRUE)

log_vec <- log(nums)
log_map <- map_dbl(nums, log)

identical(log_vec, log_map)

[1] TRUE

Benchmarking

bench::mark(
  vectorised = log(nums),
  mapped = map_dbl(nums, log)) |>
  autoplot() +
  theme_bw(18)

Calling a function for its side-effects

Side effects are not pure

Output on screen
Save files to disk
The return values are not used for further list-wise computation.

The map family should not be used.

Use the `walk` family of function

walk(), walk2()
Returns the input list (invisibly)

Saving 5 plots using indices for filenames

iwalk(split_peng,  \(x, y) {
  ggplot(x, aes(x = island)) +
    geom_bar() +
    # extract vector then unique species string
    labs(title = pull(x, species) |>
                   str_unique())
    ggsave(glue::glue("{y}_peng.pdf"))
})

fs::dir_ls(glob = "*_peng.pdf")

1_peng.pdf 2_peng.pdf 3_peng.pdf 4_peng.pdf 5_peng.pdf

Wrap up

map() or walk()

map2() or walk2()

pmap()

Before we stop

You learned to

Functional programming: focus on actions
for loops are fine, but don’t write them
Pass functions as arguments
Apprehend nested tibbles with list-columns

Acknowledgments

Eric Koncina for writing the initial content
Jennifer Bryan (LEGO pictures, courtesy CC licence)
Hadley Wickham
Lise Vaudor
Ian Lyttle
Jim Hester

Further reading

Jennifer Bryan - lessons & tutorial
Hadley Wickham - R for data science (iteration, many models)
Ian Lyttle - purrr applied for engineering
Robert Rudis - purrr, comparison with base
Rstudio’s blog - purrr 0.2 release purrr 0.3 release
Kris Jenkins - What is Functional Programming? (Blog version and Talk video)
Lise Vaudor - R-atique (in french)

Functional Programming

Learning objectives

Reminders for R

Vectors

Lists

Lists as trains

The steam machine is the list() structure

Sub-selection

Lists are cool

Can contain anything, named or not

Even empty slot

Lists inside rectangle data

Rectangle, tibble/data.frame fits our mindset

Use list-columns

Functions as actions

Functions declared …

Anonymous functions …

purrr

Function, the LEGO figures example

Consider a hypothetic put_on function

put_on(figures, antenna) returns a LEGO figure with antenna

Iteration with LEGO figures

Illustration for several lego

put_on(figures, antenna)

Functional programming

Back to R programming

For loop approach

Functional programming approach

Your turn

Answer

Functional programming focuses on actions

The for loop machinery

The purrr::map() family of functions

Iterating on 2 lists in parallel

map2 example and pmap

Generate grid of values for named arguments of a desired function

Linear modelling example

Palmer penguins from previous lecture

How to perform those 5 linear model?

Reminder: Fitting a linear model

Reminder: lm outputs complex objects

Summarise a linear model with base::summary()

Split the penguin data

Split a data.frame by group into a list of tibble

Coercion

Map the linear model

To extract \(R^2\)

base::summary() generates a list

Extract elements from lists

Extract \(R^2\) for all groups

Using anonymous functions (i. e lambdas)

Further simplifications

With shortcuts from purrr

With coercion to doubles vector map_dbl()

Lists as a column in a tibble

Example

Nesting

Rewriting our previous example

Nesting the tibble by island and species

Rewriting our previous example

With modelling using mutate and map

Don’t forget vectorisation!

Benchmarking

Calling a function for its side-effects

Side effects are not pure

Use the walk family of function

Saving 5 plots using indices for filenames

Wrap up

Before we stop

Thank you for your attention!

The steam machine is the `list()` structure

Consider a hypothetic `put_on` function

`put_on(figures, antenna)` returns a LEGO figure with antenna

`put_on(figures, antenna)`

The `purrr::map()` family of functions

Reminder: `lm` outputs complex objects

Summarise a linear model with `base::summary()`

`base::summary()` generates a list

With shortcuts from `purrr`

With coercion to doubles vector `map_dbl()`

Nesting the `tibble` by `island` and `species`

With modelling using `mutate` and `map`

Use the `walk` family of function
